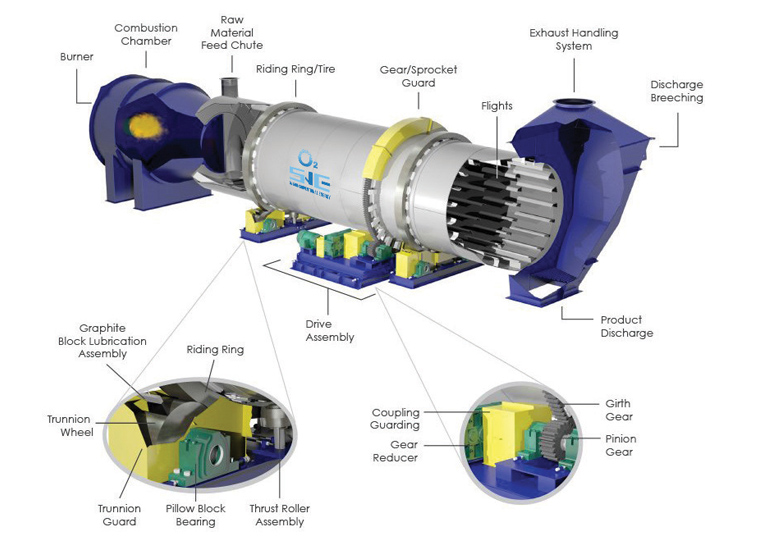

Biomass Rotary Drum Dryer

Biomass Rotary Drum Dryer

  • Single Pass with Furnace, Dust Collection, ID fan, FD Fan & Material Movement
  • Three Pass with Furnace, Dust Collection, ID fan, FD Fan & Material Movement
  • Jet Dryer Three Pass with Furnace, Dust Collection, ID fan, FD Fan & Material Movement
  • Vertical Gravity Dryer
All of the above with VFD based rotation speed control from 1 to 12 RPM

Supplied along with "Hot Air Generator", "ID Fan", "FD Fan" Dual Cyclone, Air Lock, Ducting Insulation System. Input & output screw conveyor
  • Input Capacity: 2 to 7 tons per hour
  • Material Size: 3 to 8mm
  • Input Moisture: 30 to 50%
  • Output Moisture: 10 to 15%
  • Power Required: 50 Kw to 200 Kw
  • Space Required: Width 6 Meter X Length 20 Meter
  • Output Capacity : 1to 4 ton per hour(Moisture Dependent)

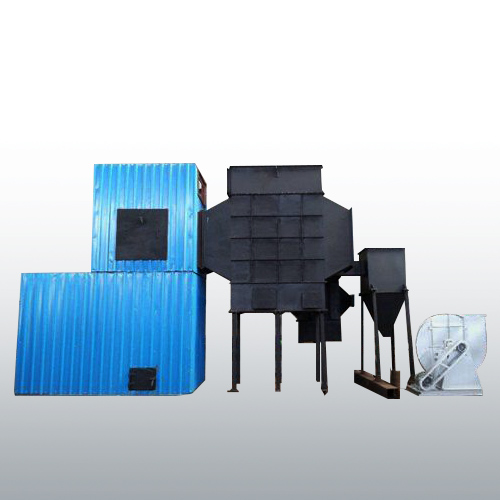

Hot air Generator/ Furnace with Spark & Fire Arresting System.

  • Dumping grate Fix Type/ FBC type
  • Retractory &Inslation suitable up to 800 Degree Celsius
  • It can burn miscellaneous wood, after drying sawdust, bark, coal, shape: length, width and height 0.5 to 4.5 million calories (650 to 700 degree Celsius)
  • Size: As per Requirement
  • Heating 25K to 30K m3/hr at 350- 550 degree Celsius (35 to 40% moisture reduction)
  • Dumping Grate Movable: For Ash Removal Every Hour
  • Feed conveyor for furnace (screw type): Feed conveyor for furnace (screw type)

FD Fan with Motor & Starter

  • Furnace blower, for efficient fuel combustion. Rating- 2 to 7.5 Kw
  • Hot Air Connection- Connection Steel Pipe between Rotary drum dryer & furnace, suitable flages for fitting & Integral castines of refrator material
    • Lenght - 1m to 2.5m
    • diameter Outer - 1m to 2m (Size of dryer)
    • diameter Inner - 600 to 800 mm

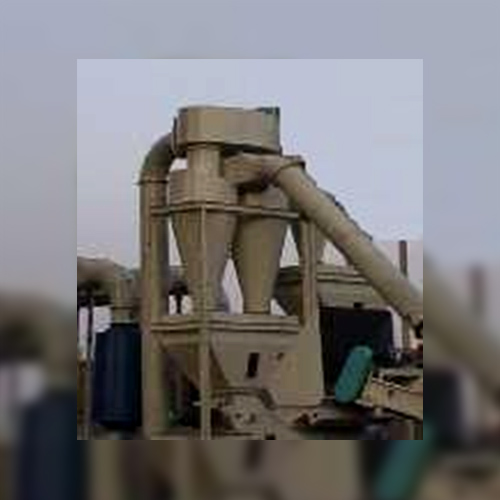

Cyclone System with Airlock Motor/Dust Rack

  • Cyclone dust removal to handle 10000 to 60000 m3/hr Air at 350 to 550 mmwc
    • Diameter - 1200 to 2000 mm
    • Height - 2500 to 4000 mm
    • Plate thickness - 4/5 mm
  • Including Motor reducer
  • Using Profile as columns, the middle of the Angle steel and herring bone said. Air lock should sustain hot gases & should not lock due to vapour deposition inside of air lock
  • Fitted before & after ID Fan depending on system design

Induced draft fan with motor & suitable starter/VFD System

  • Power Motor 35 KW to 200Kw with 1,440 RPM, including fan chassis. Including fan bottom frame& motor 5000 to 6000 m3 per hour water volume 350 to 550 MMWC
  • Wind pipe (from drum dryer till exhaust of cyaon. The diameter of air duct, including all air ducts, elbows, flanges and supports between dryer and fan. (Note: Subject to the final drawing)
    • Air flow - 5000m3/hr to 60000m3/hr
    • Pressure - 250mmwc to 550mmwc
    • RPM - 1440 RPM
    • Drive - Direct / belt
    • Motor Rating - 35 kw to 200 kw 50Hz, 3 Phase
  • Product selection depends on the system design & integration
