Bio gas & cascade storage

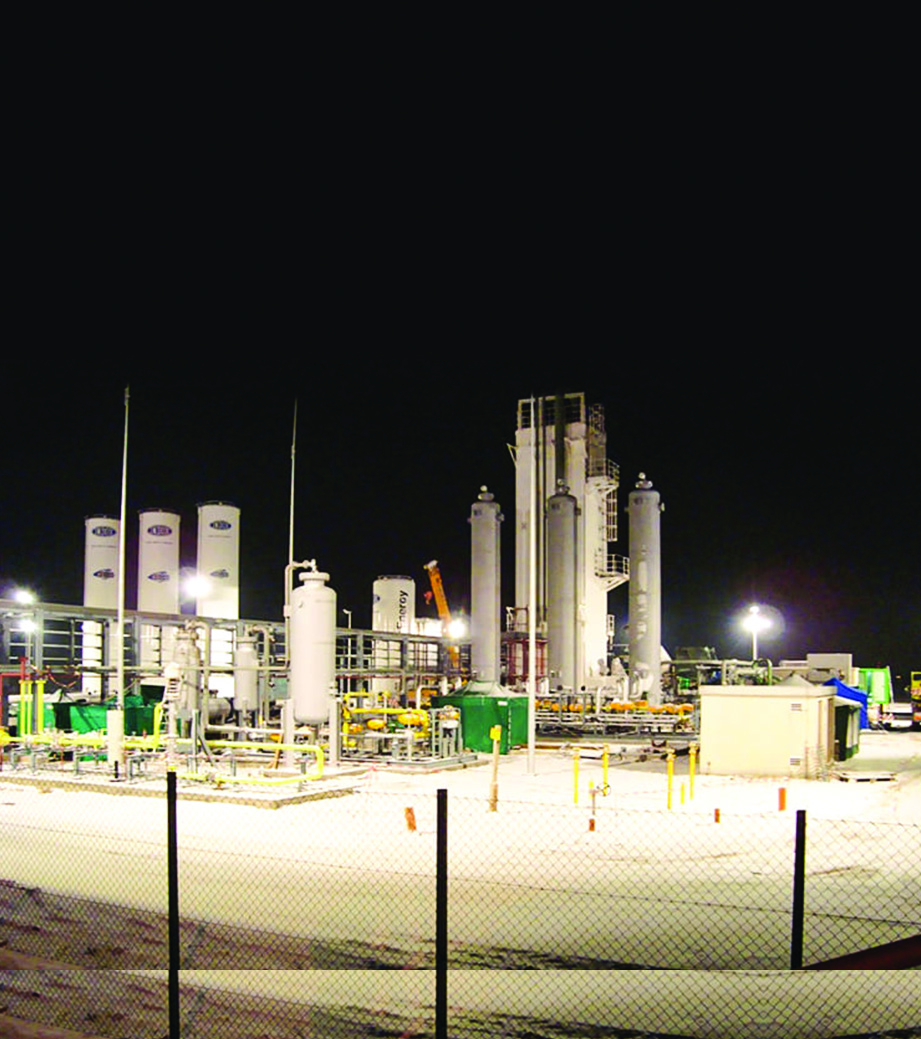

BIO CNG PLANT SETUP


briquette-plant-setup

Key Features

  • State of the art simple and robust construction
  • High treatment efficiency
  • Very low operation and maintenance costs
  • Own ground sludge and floating sludge withdrawal
  • In some cases no moving parts inside the digester
  • Highest gas production than with CSTR design
  • HS reduction scrubber (5000 to less than 5 ppm) for press mud system & 30,000 to less than 5 ppm for spent wash system
  • Methane purity achievement from 93% to 98% (PSA or Membrane technology)
  • Gas compression technology up to 250bar with minimum possible power consumption
  • Effective adiabatic compression
  • Safety check control at each possible node
  • PESO/ISO/ATEX standard compliance
  • Plant range for Bio Gas generation from 250 Nm per to 3000 Nm³/hr, with 55-60% Methane content and 15-20% CO2 content
  • Special derived technology & process setup for press mud, spent wash, especially in H₂S removal
  • Digestor & Gas Technology in Technology JV with AAT

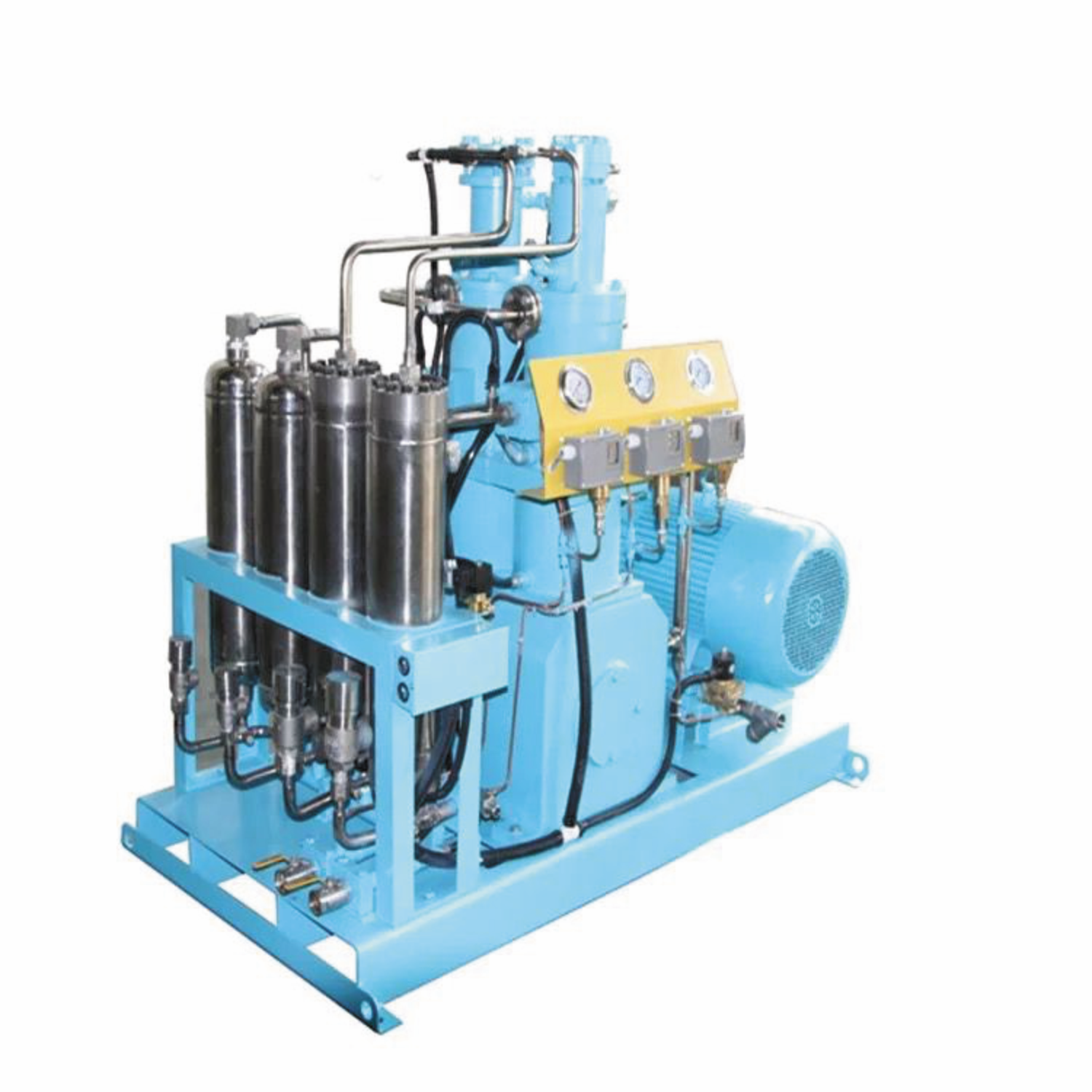

GAS BOOSTER COMPRESSOR
OIL FREE OXYGEN / NITROGEN & CNG FILLING

briquette-plant-setup

  • Volume is 20Nm3/hr to 500 Nm3/hr
  • Pressure boost uo to 150-250 Bar stand
  • Compliance PESO,ASTM,DIN
  • Water/Air cooling option
  • Inlet pressure 4-6 bar
  • Oil free system for oxygen & nitrogen gas(CNG/CBG)
  • Intercooled adiabatic compression
  • Fully automatic feedback & ith Siemens PLC
  • Safety interlocking system (Mechanical & Electrical)
  • Online Monitoring System(On demand)

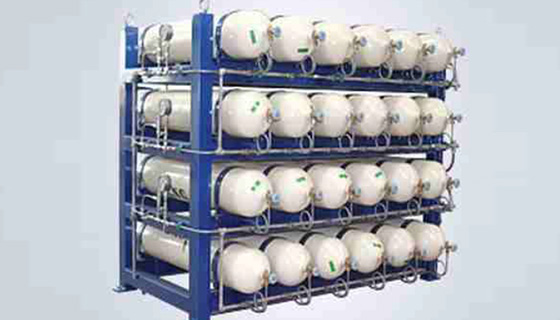

TYPE I CASCADE CNG CYLINDER CASCADE

briquette-plant-setup

  • CNG storage cascade is BIS 7285 BIS 3224
  • Cascade water capacity 3000ltr (530 kgs) to 4500ltr (630kgs)
  • Manufacturing & testing standard of CNG cylinder CR.Mo Seamless Alloy steel
  • Storage pressure 250 bar
  • Type I, 3&4 type cascade also available on demand
  • Testing Pressure upto 350 bar.

As per PESO standard

  • Canopy & Truck mounted version as per design
  • Color coding as per requirement
Standards Applicability
IS:7285/BS 5045 part - I indian Standard for industrial gas cylinder
IS:7285 part - II indian Standard for industrial gas cylinder
IS 15490 Indian Standard for CNG cylinder

All tubes as per SS-316/316L Grade

All thread a per IS 3224-170

Fitting confirm to ASME A269

Single or three storange back system



CNG KIT



  • Dual (CNG and diesel) Kit
  • Full CNG Substitute Kit
  • Suitable for DI and CRDI Fuel,Injection Diesel Tractor, Pickup Vehical & Mini Trucks
  • Suitable from 35 to 75kw application

Benefits of CNG Refurbishment

  • Shifting to Economical fuel 25 to 30 INR less cost
  • Shifting to clean fuel less carbon emission
  • Contamination Free Fuel
  • Higher Efficiency
  • Mixing Ratio tuning to requirements 40% to 70%
  • Less Filter Replacement.
  • Over all 30% to 40% saving. Compared to diesel
  • Installation team can be deployed at sugar factory for bulk quantity

Safety & Approval

  • Reduced Vibration & Longer Oil Life
  • As per IS ..... standard
  • ARIA Approval for refurbishment Dual Fuel Kit

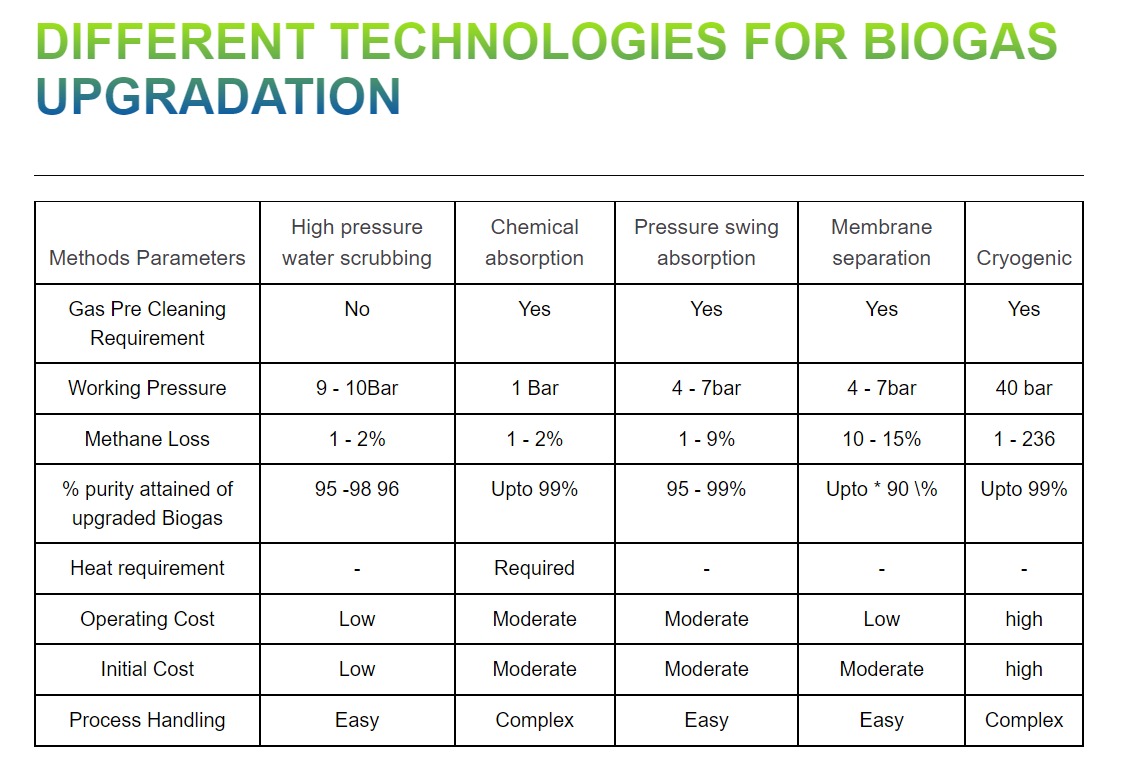

Hollow Fiber Membrane Technology for CO2 / CH4 Separation

  • The membrane separates gases by the principle of selective permeation across the membrane wall.
  • Input Raw Material Moisture : Max 55%
  • Relatively fast permeable gases such as CO2 and H2O to pass through the membran wall quickly are diverted.
  • The slow permeable gasses such as CH4 and N2 flows straight through are part of the product gas.
  • The medium is permeable gases such as O2 and H2S will be partially separated.

Equipment and Machine for Conversion of Biogas to BioCNG

Image 1

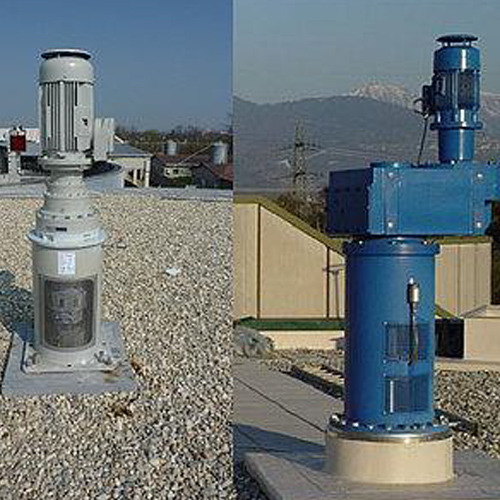

Agitators
Image 1

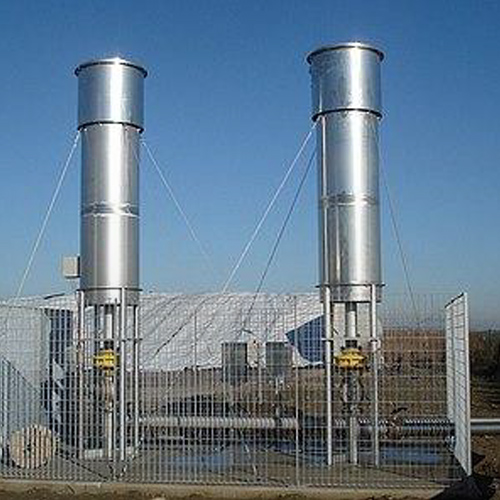

Flares
Image 1

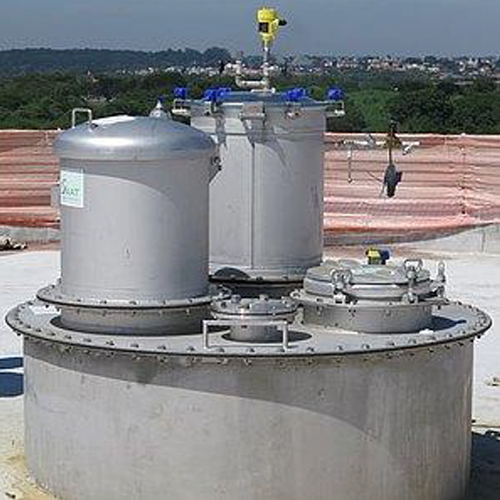

Digester
Image 1

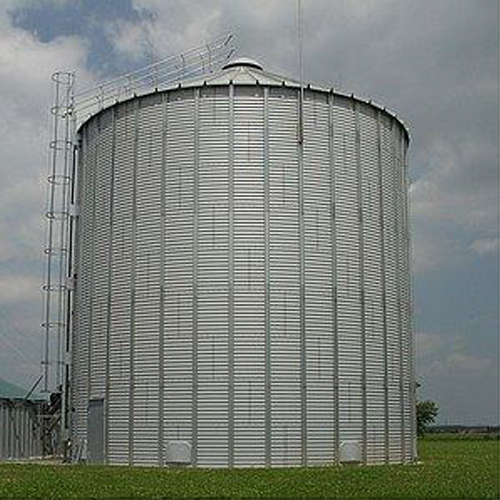

gas storage
Image 1

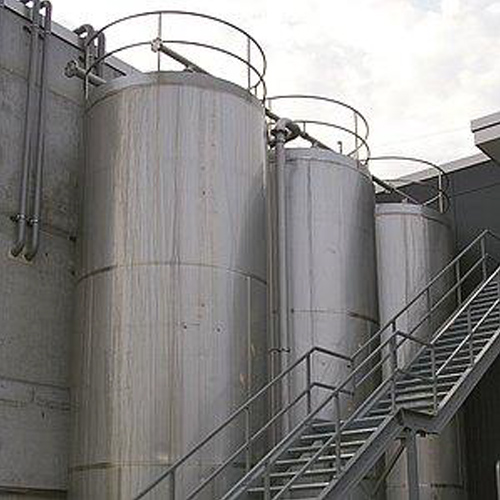

hygienisation system
Image 1

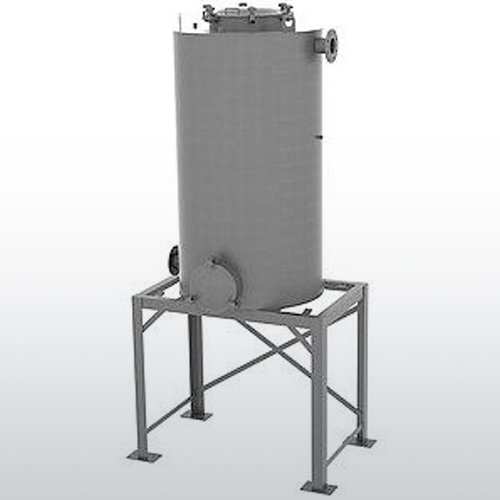

Activated carbon filter
Image 1

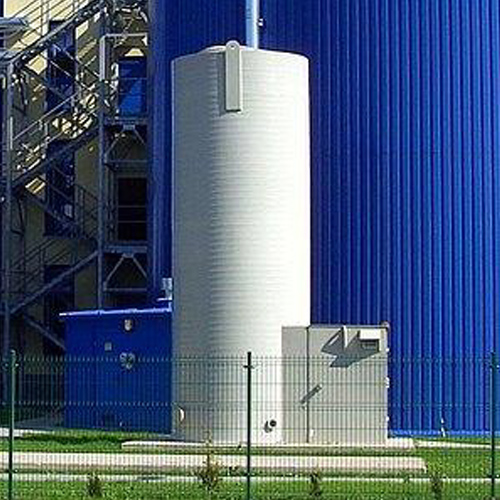

desulphurization
Image 1

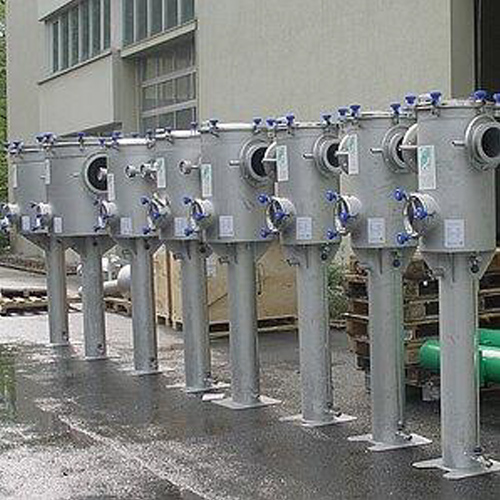

Gravel filter
